1. Aquarium Air Pumps Performance Data  << 수족관, 관상어용 >>
2. Piston Pumps Performance Data
3. Linear Pumps Performance Data  << 의료용, 정화조용 >>

Aquarium Air Pumps Performance Data  << 수족관, 관상어용 >>

Product Range 10~25ℓ/ min , 0.2~0.6 kgf / cm2
AC 220V, 60Hz, Continuous Duty, Normal Condition


AP1
AP2

Model
Power
Max. Air Flow
Max. Pressure
Wt
W×L×H
Watts
ℓ / min
kgf/㎠
kg
mm
AP1
1.5
3.5
0.18
0.3
84×154×70
AP2
3
7 (3.5×2)
0.18
0.4
84×154×70
HAP2
6
14 (7×2)
0.36
0.6
95×179×74

Air flow can be controlled by diode (half wave rectifier circuit)

Warrant 10,000 hours lifetime



Piston Pumps Performance Data

Product Range 5~25ℓ/ min, 0.5~3 kgf / cm2 , Ball Bearing Type

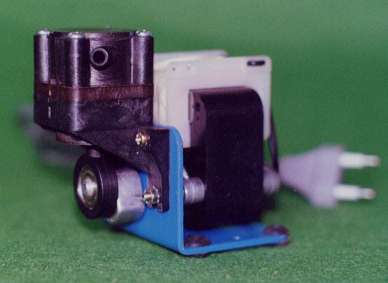

A. Shaded Pole Motor, 2P, AC 220V, 60Hz, Continuous Duty, Normal Condition    << 의료용 네블라이져 >>

PASP30T

Model
Power
Max. Air Flow
Max. Pressure
Max. Vacuum
Wt
W×L×H
watts
ℓ / min
kgf/㎠
mmHg
kg
mm
PASP20T
11
7
0.8
320
1.1
75×90×100
PASP30T
18
14
1.2
400
1.2
75×105×100
PASP40T
25
16
1.5~3
450~700
1.3
75×124×108

Warrant 20,000 hours lifetime

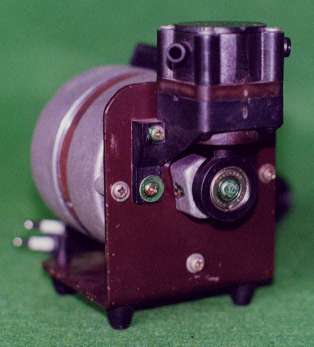

B. Condenser Run Induction Motor, 2P,4P, AC 220V, 60Hz, Continuous Duty, Normal Condition
<< 순 산소 발생용 >>

PACR2P8222

Model
Poles
Power
Max.
Air Flow
Max. Pressure
Max. Vacuum
Wt
W×L×H
watts
ℓ / min
kgf/㎠
mmHg
kg
mm
PACR2P8222
2
20
19
3.5
700
1.8
85×131×133
PACR2P9440
4
50
30
5
800
3.9
125×170×155

Warrant 20,000 hours lifetime



Linear Pumps Performance Data   << 의료용, 정화조용 >>

Product Range 30~100ℓ/ min, 0.3~0.8 kgf / cm2

AC 220V, 60Hz, DC12V, Continuous Duty, Normal Condition


GLP40
GLP40 Inside Body
GLP80
GLP80 Inside Body










Model
Power
Max.
Air Flow
Max. Pressure
Max. Vacuum
Wt
W×L×H
watts
ℓ / min
kgf/㎠
mmHg
kg
mm
Inside Body
Inside Body
GLP40
25
47
0.2~0.8
200~350
1.7
1.0
184×190×148
126×95×84
DCGLP40
25
40
0.3
0
1.8
184×190×148
GLP80
70
95
0.45
350
4.0
2.2
238×280×210
178×129×108


Warrant 10,000 hours lifetime
The Inside bodies of GLP models enjoy a good reputation from buyers for their own applications.
Available at 24V
