Peristaltic Dosing Pump

Double Head
Single Head
AP 26/44 DA
AP 26/44 DF
AP 26/44 DD
AP 26/44 SA
AP26/44 SF
유량 : 26 rpm - 379 LPD / 44 rpm - 664 LPD [ 2%오차 범위내 ]
토출 압력 : 6.9 bar
Motor :110VAC,220VAC,230VAC,250VAC
Tube : 5 low pressure & 3 high pressure SANTOPRENE tube
유량 : 26 rpm - 189 LPD / 44 rpm - 322 LPD
      [ 2%오차 범위내 ]

토출 압력 : 6.9 bar
Motor :110VAC,220VAC,230VAC,250VAC
Tube : 5 low pressure & 3 high pressure      SANTOPRENE tube

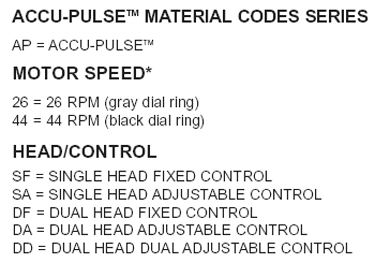

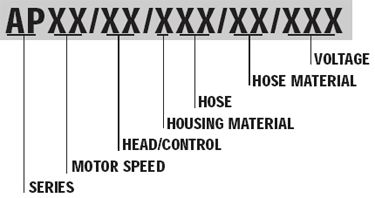

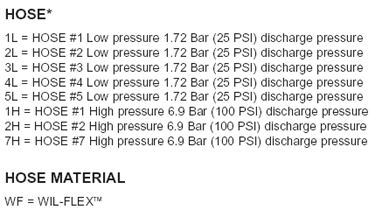

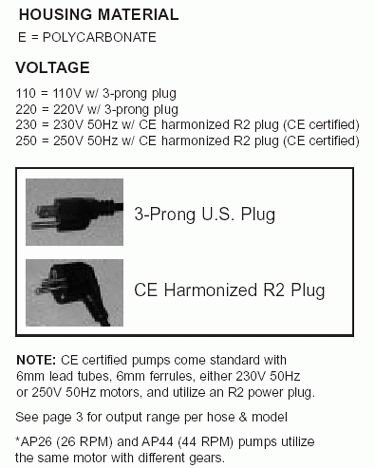

◈ ACCU-PULSE SPEC 구성/ SERIES별 사양

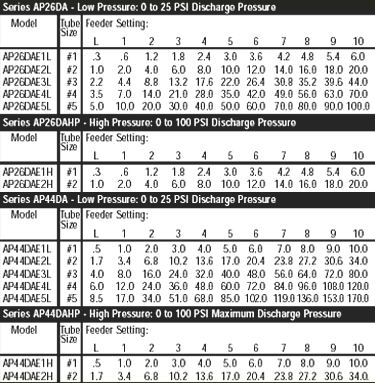

[ AP 26 / 44 DA SERIES ]

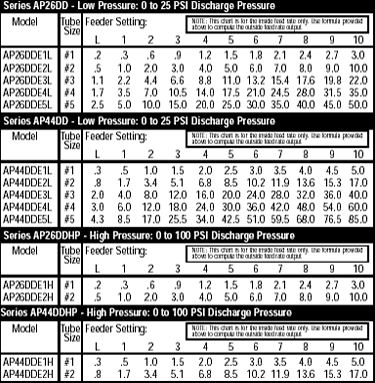

[ AP 26 / 44 DD SERIES ]

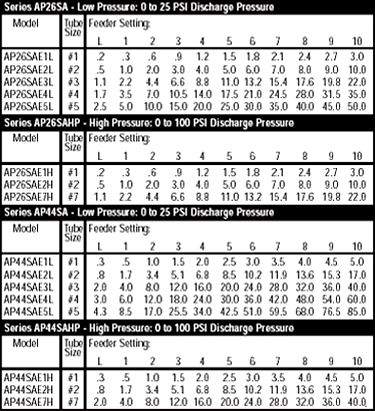

[ AP 26 / 44 SA SERIES ]
