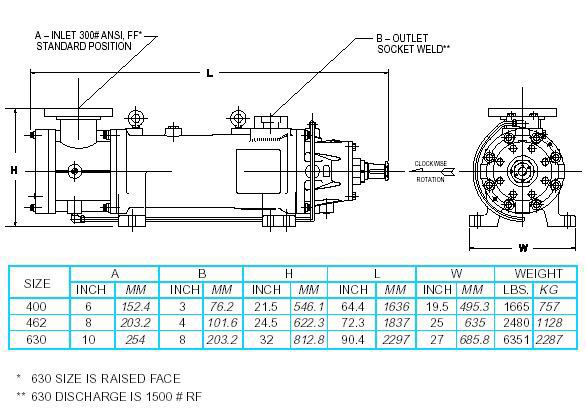

▣ 8L Series

1.Cashing
-- Ductile Iron

2.Rotor Housing
-- Bronze/Bimetal

3.Power Rotor
-- Alloy Steel
4.Idle Rotor
-- Alloy Steel

5.Outlet Pressure
-- Bronze:Max 70 bar
-- Bimetal:Max 138 bar
6.Inlet Pressure
-- Max 5.2 bar

7.Viscosity/Temp.
-- Min 20 cst(33ssu)
- B type:Max 650cst
- H type:Max 650cst

8. Temperature
- B type:-18~82℃
- H type:-18~121℃
