Metering Pump (CR, CRMÀÇ Dimension)


[ PVC Standard Type - DIMENSION ]

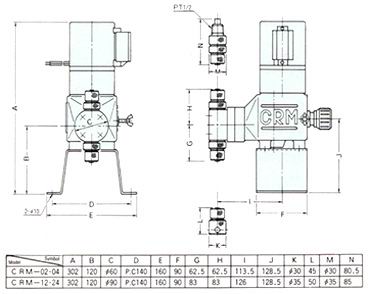

CRM-02,04 CRM-12,24(Hose type)

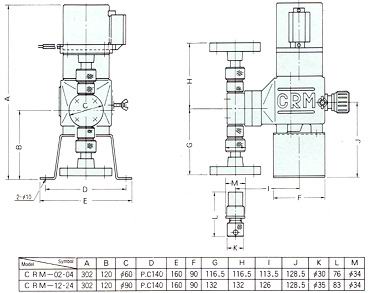

CRM-02,04 CRM-12,24(Flange type)

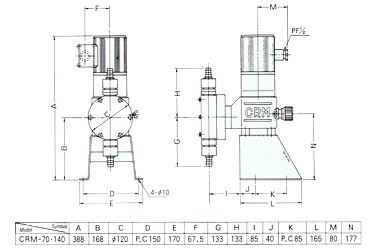

CRM-70,140 (Hose type)

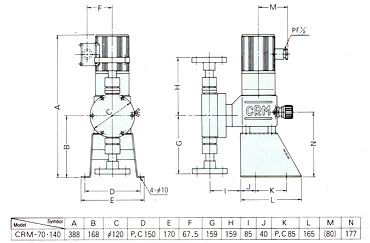

CRM-70,140 (Flange type)

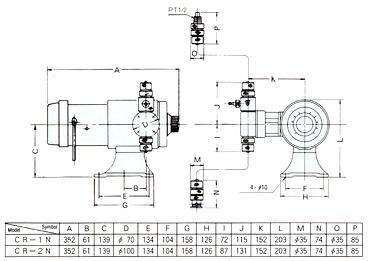

CR-1N,1-2N, CR-2N(Hose type)

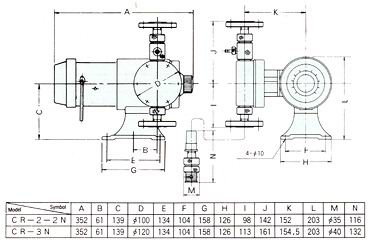

CR-2-2N, CR-3N,3-2N(Flange type)

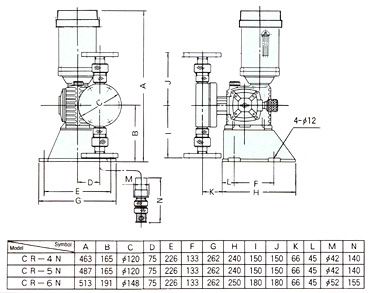

CR-4N,5N,6N

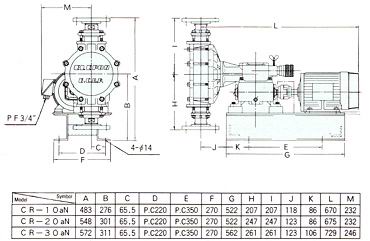

CR-10aN,20aN,30aN

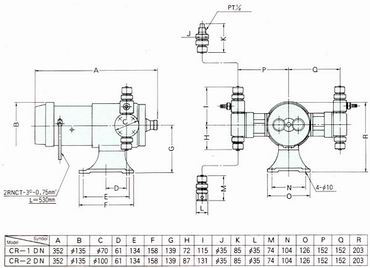

CR-1DN,2DN (Hose type)

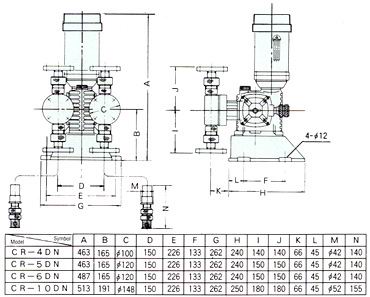

CR-4DN,5DN,6DN,10DN

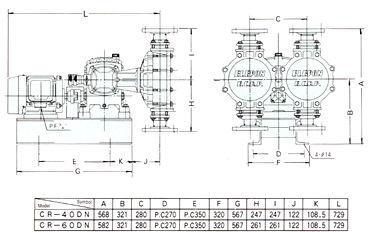

CR-40DN,60DN
